MEPHISTO (under construction)

Facility for particle physics with cold neutrons

MEPHISTO scheme MEPHISTO scheme

Since the start of user operation, the FRM II provides a cold white neutron beam for long-term user-dedicated experimental set-ups.

Such an experiment is normally planned and built up by external groups, but additional help during the commissioning of the experiment is necessary. So, this work must be organised closely with the local instrument scientist. The desired precision is reached inter alia by good statistics, which means long-term experiments over several reactor cycles.

The experimental area MEPHISTO, the measurement facility for particle physics with cold neutrons, is dedicated to experiments in the field of nuclear and particle physics. Currently, the experimental area moves from the Neutron Guide Hall West to the Neutron Guide Hall East. The solely used neutron guide SR-4b will deliver a white cold spectrum for experiments. A removable 11% velocity selector at the end of the guide will complete the beam line.

The MC-simulation for this beam with a dimension of 60 × 106 mm² proposes a mean wavelength of 4.5 Å and a gold capture flux of 2 ×1010 n cm-1 s-1. The experimental area is 5 × 25 m², diagonally built-in in the Neutron Guide Hall East. The spectrum shows a shoulder to smaller wavelengths, and the maximum of the spectrum is located at 3.3 Å.

Currently, the instrument PERC [1] is installed at MEPHISTO for the first years of operation in the Neutron Guide Hall East. This instrument is a precise, bright, and intense source of protons and electrons from the neutron decay. The instrument PERC itself is open for external user groups with spectrometers to measure the protons and electrons.

[1] Dubbers, D. et al., NIM- A 596, 238 (2008).

Typical applications

The experiments at MEPHISTO concentrate on induced nuclear reactions of the neutron with atoms or on the free neutron decay with its products.

Some of the experiment types performed at MEPHISTO:
  • Free neutron decay and spectroscopy of the decay products
  • Spectroscopy of neutron-induced fission
  • Production of ultra-cold neutrons with liquid helium
  • Production of ultra-cold neutrons with solid gases
Infrastructure

A removable neutron velocity selector is placed at the end of the neutron guide. The minimal wavelength is 4.5 Å. The resolution of the passing wavelength is 11%. The selector can be rotated to tune the resolution.

A data system based on VME (ADC, peak ADC, QDC, TDC) is available. For signal-forming purposes, several NIM inserts exist; a list can be requested from the local instrument scientist.

Spectroscopic amplifiers and high-voltage sources for detectors are also available.

Technical data
Neutron beam
  • End of the cold neutron guide SR-4b (m = 2.5)
  • Cross section of the guide: 60 × 106 mm²
  • Thermal capture flux (simulated): 2 × 1010 n cm-1 s-1
  • Mean wavelength (simulated): 4.5 Å
  • Beam height from floor: ~ 1300 mm
  • Experimental area: 5 × 25 m²
  • Maximum at 3.3 Å
  • Standard neutron spectrum with a shoulder to smaller wavelengths
Beam attenuators
  • By geometrical attenuation, the beam intensity can be reduced to 20%, 4% and 2%
Polarisation
  • A bender (vertical polarisation direction) is available to polarise the complete cross-section of the beam

Instrument scientist

Dr. Jens Klenke
Phone: +49 (0)89 289-14771
E-mail: jens.klenke@frm2.tum.de

Operated by

TUM

Funding

News

Red alert: Shielding incoming!

Red alert: Shielding incoming!

Read more
At a glance

At a glance

Read more
On delivery

On delivery

Read more

Publications

Find the latest publications regarding MEPHISTO in our publication database iMPULSE:

impulse.mlz-garching.de

Citation of the instrument

Heinz Maier-Leibnitz Zentrum. (2015). MEPHISTO: Facility for particle physics with cold neutrons. Journal of large-scale research facilities, 1, A21. http://dx.doi.org/10.17815/jlsrf-1-48

For citation please always include the DOI.

Gallery

MEPHISTO
MEPHISTO
Neutron spectrum
Neutron spectrum

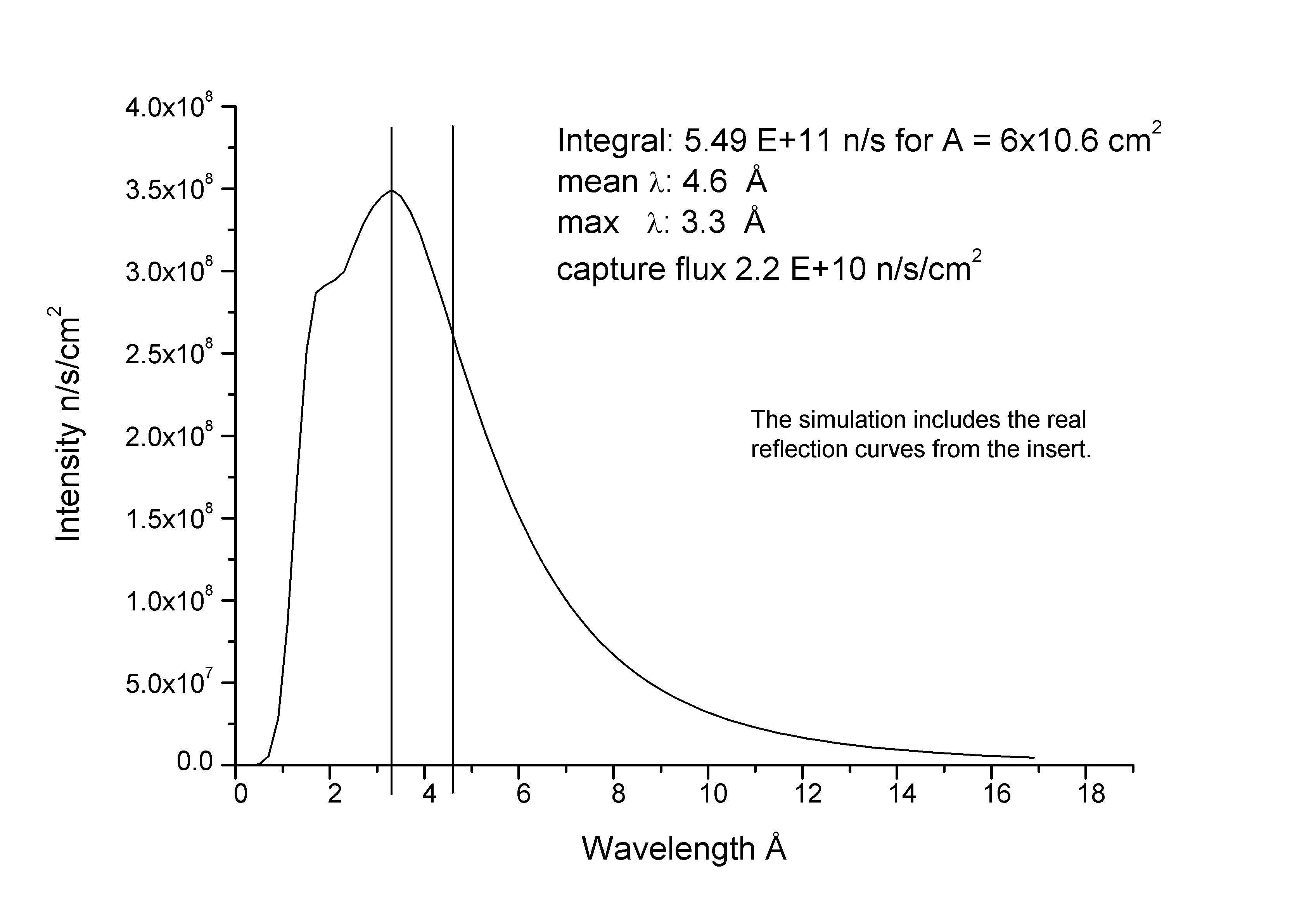

Figure 1: Simulated cold neutron spectrum of the SR4b at the MEPHISTO facility in neutron guide hall East.
