Preventing dangerous short circuits in lithium batteries

Lithium-metal batteries are among the most promising technologies for energy storage. They offer significantly more energy in less space and at a lower weight. However, one phenomenon slows down their development: tiny, needle-like metal structures called dendrites, made of lithium. They can grow uncontrollably inside the battery and cause devastating short circuits. Until now, solid electrolytes, including polymer-based electrolytes, have been considered a way to suppress this growth.

TUM researcher Fabian Apfelbeck is working on a measuring device that can be used to examine the charging and discharging cycles of button cells. © V. Hiendl/e-conversion

TUM researcher Fabian Apfelbeck is working on a measuring device that can be used to examine the charging and discharging cycles of button cells. © V. Hiendl/e-conversion

Lithium-metal batteries are among the most promising technologies for energy storage. They offer significantly more energy in less space and at a lower weight. However, one phenomenon slows down their development: tiny, needle-like metal structures called dendrites, made of lithium. They can grow uncontrollably inside the battery and cause devastating short circuits. Until now, solid electrolytes, including polymer-based electrolytes, have been considered a way to suppress this growth.

“Electrolytes are responsible for transporting lithium ions back and forth between the two electrodes inside a battery – making the flow of current possible in the first place,” explains Fabian Apfelbeck. The physicist is pursuing his doctorate in the research group of Prof. Peter Müller-Buschbaum, former scientific director of the FRM II, at TUM’s Chair of Functional Materials and is funded by the Excellence Cluster e-conversion.

Polymer-based electrolytes offer greater stability and safety than liquid electrolytes because they cannot leak or ignite. They also reliably separate the electrodes from each other, thus preventing short circuits. “However, our measurements show that dendrite growth can also occur directly inside the polymer electrolyte — right in the material that is actually supposed to protect against dendrites,” says Fabian Apfelbeck, first author of the study published in Nature Communications.

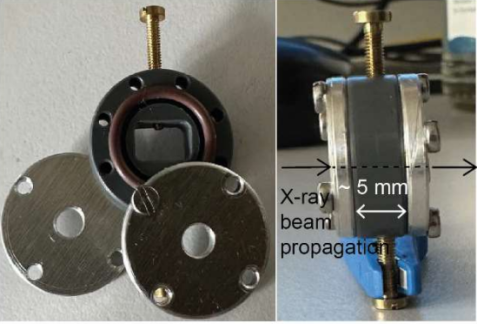

The airtight and moisture-proof miniature cell, designed by Dr. Gilles Wittmann, has a diameter of 2 cm and a depth of only 5 mm, enabling measurements to be taken under real operating conditions. © Gilles Wittmann

The airtight and moisture-proof miniature cell, designed by Dr. Gilles Wittmann, has a diameter of 2 cm and a depth of only 5 mm, enabling measurements to be taken under real operating conditions. © Gilles Wittmann

Using a nanofocus to look inside the battery

The findings, therefore, challenge a central assumption in battery research. Prof. Peter Müller-Buschbaum explains: “Until now, it was assumed that dendrite growth occurs only at the interface between electrode and electrolyte. The fact that it also appears far away from that interface surprised us. This new knowledge helps us develop and further improve materials in which such internal crystallization processes do not occur in the first place – enabling more efficient, safer, and longer-lasting energy storage.”

The researchers used a particularly precise method for their investigations: so-called nanofocus wide-angle X-ray scattering experiments, carried out at the German Electron Synchrotron DESY in Hamburg. Using an X-ray beam with a diameter of just 350 nanometers, they could visualise the microscopic changes inside a polymer-based electrolyte during battery operation for the first time. They used a specially developed miniature cell for the measurements, which was designed by co-author Gilles Wittmann, a postdoctoral researcher at the small-angle scattering instrument SANS-1 at the MLZ. The circular cell is smaller than conventional battery cells and reliably protects the sensitive materials from air and moisture. This enabled the researchers to analyse the behaviour of the battery during actual operation.
