MLZ is a cooperation between:> Technische Universität München> Helmholtz-Zentrum Hereon > Forschungszentrum Jülich
MLZ is a member of:
MLZ on social media:
Perpetual youth for batteries? Neutrons explain aging process in lithium ion batteries

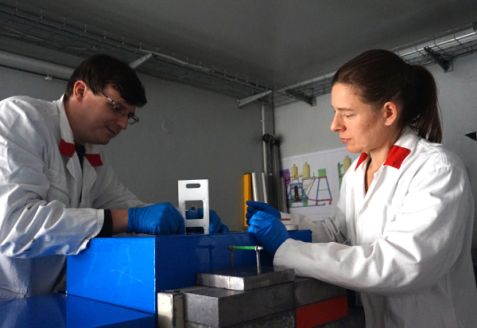

Stefan Seidlmayer (left) and Petra Kudejova (right) put the holder with the sample into the instrument PGAA at the FRM II. © Claudia Niiranen / FRM II
A key issue with lithium ion batteries is aging. It significantly reduces their potential storage capacity. To date, very little is known about the causes of the aging effects. Scientists from the Department of Technical Electrochemistry and the Research Neutron Source FRM II at the Technical University of Munich (TUM) have now come a step closer to identifying the causes in their latest experiments.
Lithium ion batteries with graphite anodes are a relatively new development. They were patented only in 1989 and have been deployed in electrical devices since 1991. Since then, they have been a success worldwide and do their service not only in small electrical devices but also in electric cars, airplanes and even locomotives. In the future they will also serve as intermediate storage with up to megawatt capacities.
Batteries with graphite anodes suffer their first significant loss of capacity during the initial charging cycle, the formation step. A battery loses up to ten percent of its capacity in the process. Each additional charge-discharge cycle reduces storage capacity further, if only insignificantly. Capacity is also lost through the mere storage of batteries – especially above room temperature.
Physics has come up with a number of ideas about the nature of these aging effects, but no one has yet found the definitive explanation for them. TUM scientists at the Chair of Technical Electrochemistry and from the FRM II have now come a good deal closer to closing this knowledge gap in their latest experiments.
Detective work using X-rays and neutrons
In order to understand the aging mechanism and to uncover the reasons behind them, TUM scientists combined electrochemical investigations with measurement methodologies as diverse as X-ray diffraction, impedance measurements and prompt gamma activation analysis (PGAA).
They deployed these methodologies to analyze the behavior of batteries with graphite anodes and nickel-manganese-cobalt cathodes, so-called NMC cells, at various temperatures. NMC cells are popular in electromobility since they have a large capacity and can theoretically handle charging voltages up to just under five volts. However, above 4.4 volts aging effects increase strongly.
Using X-ray diffraction, the scientists investigated the loss of active lithium over multiple charging cycles. They used impedance measurements to register the increasing resistance in the battery cells. Neutron activation analysis ultimately facilitated the accurate determination of extremely minute quantities of transition metals on the graphite electrodes.
Mechanisms of capacity reduction
The significant capacity loss in the formation step is caused by the build-up of a pacifying layer on the anode. This consumes active lithium, but also protects the electrolyte from decomposition at the anode.
The research group determined two key mechanisms for the loss of capacity during operation: The active lithium in the cell is slowly used up in various side reactions and is thus no longer available. The process is very temperature dependent: At 25 °C the effect is relatively weak but becomes quite strong at 60 °C.
When charging and discharging cells with a higher upper cut off potential (4.6 V), cell resistance increases rapidly. The transition metals deposited on the anode may increase the conductivity of the pacifying layer and thereby speed up the decomposition of the electrolyte.
On the road to better lithium ion batteries
By way of trial and error, battery manufacturers have determined the optimal relationship between the electrode material and lithium. “Using our insights, now individual processes can be improved,” says Irmgard Buchberger, PhD student at the Department of Electrochemistry at TU Munich. “Possibilities include additives that improve the build-up of the pacifying layer, for example, or modifications of the cathode surface.”
The research was funded by the German Federal Ministry of Education and Research (BMBF) in the context of the ExZellTUM. The prompt gamma activation analysis was done in cooperation with the Heinz Maier-Leibnitz Center (MLZ) at the instrument PGAA of the Research Neutron Source FRM II at the Technical University of Munich.
More information about the project ExZellTUM (in German only): www.exzelltum.de
The TUM information with additional photos
I. Buchberger, S. Seidlmayer, A. Pokharel, M. Piana, J. Hattendorff, P. Kudejova, R. Gilles, and H. A. Gasteiger; Aging Analysis of Graphite/LiNi1/3Mn1/3Co1/3O2 Cells Using XRD, PGAA, and AC Impedance; Journal of The Electrochemical Society 162, A2737 (2015)
